Case IH Quantum V/F/N Series
The new Quantum F, V and N are designed to satisfy the most demanding professional fruit and vineyard growers. A powerful machine with advanced technical solutions and driving comfort makes long working days in vineyards and orchards a joy.
The range of high-value crop tractors is one of the most comprehensive on the market. We understand that finding the right tractor for your specific crop and operation is essential, which is why we offer a diverse selection to cater to your needs.
ARRANGE A DEMO
Want to know More?
Contact your nearest branch
Follow us:
There is a model to meet your needs
Whether you have a small or large farm, grow different types of crops, or need a tractor for specific tasks, we have options that can meet your requirements.

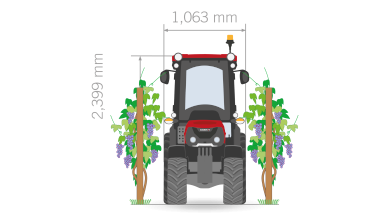

Quantum V
Available from 75 to 120 hp, the 1,063 mm wide Quantum V is ideal for use in narrow row widths on vineyards (Tyres RI 500 mm).

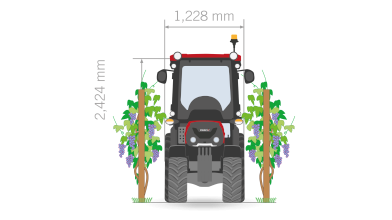

Quantum N
At 1,228 mm wide on standard 320/85 R24 tyres, N models are a great fit for any operation where a sub-1.3 m width is a crucial design element. If you need a narrow machine, take a look at what a Quantum N can offer (Tyres RI 525 mm).

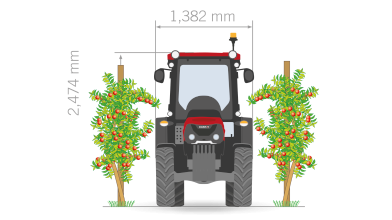

Quantum F
Designed for the fruit sector, the 1,382 mm wide Quantum F is made for orchards with regular row spacing (Tyres RI 575 mm).

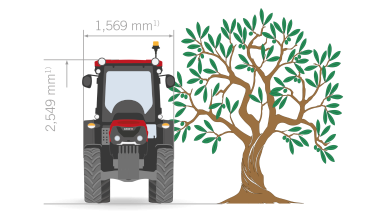

Quantum CL
At 1,569 mm wide, CL models are suited to a broader range of field tasks, yet retain the key features for which Quantum tractors are well-known. With a low centre of gravity, they are sure-footed and stable when working on hillsides or with a loader (Tyres RI 650 mm).
Features
Explore The Series
Business Class in a Compact Size
When you first get in the all-new 4-pillar comfort cab, you’ll immediately notice the raised windscreen and new ergonomic controls. This complete redesign provides an even more spacious driver’s workstation that combines straightforward operation with the premium interior finish Case IH is known for. The operator environment is the new optional cab suspension on CL & F versions, and a new premium seat with enhanced cushioning on all versions for greater comfort and fatigue reduction over long working periods.
The Heart of The Quantum
The new FPT F5 3.6L engine offers more power and 5% higher torque without impairing the crucial requirements of a specialised tractor: manoeuvrability and superior visibility. These high-performance units are available from 75 to 120 hp to deliver best performance while keeping running costs low. The most economical 75 hp model, powered by a 3.4 L 2 valve engine, comes without AdBlue.
The Efficient Choice
The Quantum V/N/F/CL transmission can be customized to fit customer needs. The transmission include Powershuttle and ActiveDrive 2 options, as well as an ergonomic repositioned shift lever and optional creep gear. A preselected shuttle aggressiveness and parking lock are also available as options.
Full Hydraulic Power
The double pump, open-center hydraulic system comes standard on all Quantum models, providing a powerful 64 l/min output that is suitable for many tasks. And if you need even more hydraulic power, an optional 80 l/min version with load sensing is available to ensure that you have all the power you need to tackle any job with ease. A dedicated 36 l/min pump guarantees reliable steering and greasing services.
Support Like No Other
Our professional dealer network backed up by local Case IH teams, industry-leading Case IH support tools, modern training methods, best-in-class replacement parts, support and logistics performance. All you need for an excellent all-encompassing after-sales service to keep you farming.
PTO Packages for Every Need
Whether your focus is on power or fuel efficiency, the Quantum PTO delivers the right performance for every task. The PTO offers up to 3 speeds and ground speed options, and its starting behaviour can be set in 3 modes based on the load. Additionally, an automatic PTO for both front and rear operations can be adjusted through the new A-pillar monitor and activated from the armrest.
