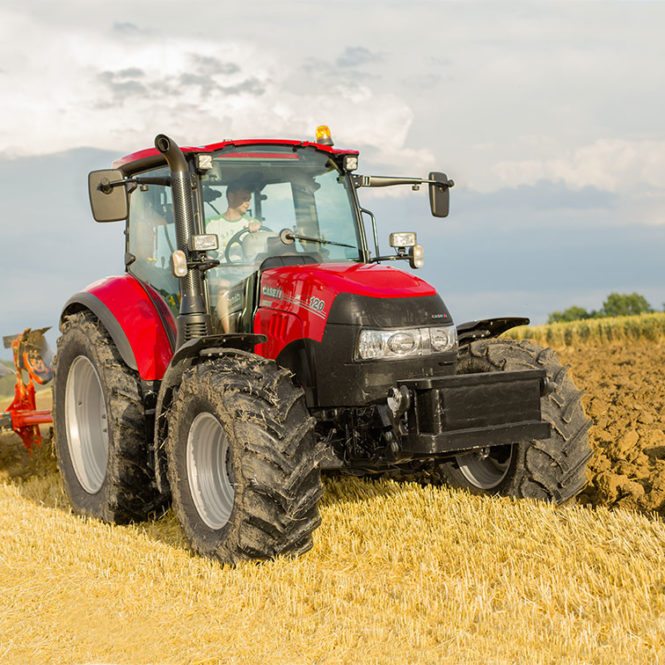

Case IH Luxxum Series

Operator Environment

Enjoy the Luxxum cabin with wide opening glass doors, high-visibility roof window on loader work and a fully-adjustable air suspended seat during your work! For extended operation hours, total of ten LED work lights and a flashing beacon at transport will make night-time jobs easier and safer.

Ease of Control

Luxxum’s armrest is designed to make repetitive operations easier than before keeping operator ergonomics and safety at first. With the ergonomic Multicontroller lever and optional electro-hydraulic joystick you can handle multiple operating controls in the palm of your hand within the reach of your thumb.

Engine

Powered by the new FPT’s Stage V F5 engine, engine displacement increased to 3.6 l and it now generates 5% more torque. Moreover, you can achieve maximum torque at 1.300 rpm which improves load response and startability.

Transmission

With the ActiveDrive4 transmission, standard on all Luxxum models, you benefit from the sort of automation normally seen only in much larger machines. Not only do you get a four-step powershift with no need to clutch between gears, but there’s also no requirement for clutching between ranges. Furthermore, the smoothest shuttle on the market is complemented by programmable forward/reverse gear speed selection and the ActiveClutch feature allowing clutchless stop&drive (only with brakes activation).

Ready to Tackle Every Terraine

Fixed or suspended front axles mean Luxxum tractors offer a specification that perfectly suits the demands of each individual customer. Whether your workload involves lots of transport or a little, heavy or light operations in the field, Luxxum models can be specified to suit. Providing 80mm of movement, the front axle suspension system is the same well-proven arrangement that features on Case IH Maxxum tractors, with damping controlled via an advanced accumulator and regenerative valve system for a super-smooth ride and automatic self-levelling.

Full Control with “Active-Clutch”

Active Clutch improves and enhances your comfort and safety. This feature improves ease of stopping and safety at road junctions or when setting off from a complete stop with heavy trailers attached. Torque sensors in the transmission ensure automatically that power transmission is not interrupted when the brake is operated while driving downhill with heavy loads, i.e. the clutch is not disengaged. The clutch also does not respond if only the steering brake is operated.

All-in-one Solution

The Luxxum’s design features a strong heavy duty front axle and high hydraulic capacity with a closed-circuit load-sensing hydraulic pump and electro hydraulic remotes. On top, the Luxxum range can be equipped with electro-hydraulic joystick enabling declutch function and smooth shuttle modulation that provides ultimate comfort in control. With the perfectly matching new range of Case IH L series front loaders, you have the choice among 12 models to suit best your needs at your farm.

Working in Synergy

Just because these are mid-sized machines doesn’t mean they do without the technology available on their bigger brothers. All Luxxum tractors can be ordered monitor-ready from the factory, with a package including a monitor mounting bracket and ISO 11783 connector, allowing them to not only work with GPS systems, but also to operate any compatible ISOBUS-controlled implement.
